| PDF Catalog download |
|
|
|
|
| Dimension |

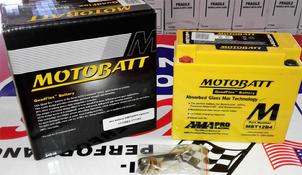

Voltage 12
CCA 150
Capacity (10HR) 11
Weight 3.52kg / 7.76lbs
Dimensions (Inches / mm)
L: 5.91 (150)
W: 2.76 (70)
H: 5.12 (130) |
|
|
|
|
| Brief |
Terminal Locations 2
Terminal 2, M6x2.5 (Part # MPT2)
Screws 4, M6x7 (Part # 2xMPS2)
Allen Wrench 1, 4x4 (Part # MPAK2)
Terminal Caps 4, 12x5.5 (Part # 2xMPC2)
Spacer NA
Case Color Yellow
Cap Style NA
Replaces:
YT12BBS, YT12B4 |
|

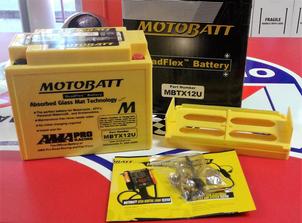

| Dimension |
Voltage 12
CCA 200
Capacity (10HR) 14
Weight 4.40kg / 9.7lbs
Dimensions (Inches / mm)
L: 5.94 (151)
W: 3.43 (87)
H: 5.12 (130) |
|
|
| Brief |
Terminal Locations 4
Terminal 2, M6x2.5 (Part # MPT2)
Screws 4, M6x7 (Part # 2xMPS2)
Allen Wrench 1, 4x4 (Part # MPAK2)
Terminal Caps 4, 12x5.5 (Part # 2xMPC2)
Spacer 2, Bottom (Part: MPBS4)
Spacer 1 = 5mm, Spacer 2 = 10mm, Total = 15mm
Case Color Yellow
Cap Style NA
Replaces:
YB12BB2, YTX12BS, YTX14BS, YTX14HBS, YTX14LBS, KMX14BS, YTX15L-BS |
|
|
|
|

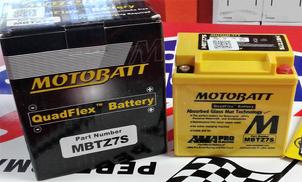

| Dimension |
Voltage 12
CCA 100
Capacity (10HR) 6
Weight 2.10kg / 4.63lbs
Dimensions (Inches / mm)
L: 4.49 (114)
W: 2.76 (70)
H: 4.21 (107) |
|
|
| Brief |
Terminal Locations 2
Terminal 2, M5x2.5 (Part # MPT1)
Screws 4, M5x7 (Part # 2xMPS1)
Allen Wrench 1, 3x3 (Part # MPAK1)
Terminal Caps 2, 11x5.5 (Part # MPC1)
Spacer NA
Case Color Yellow
Cap Style NA
Replaces:
YTX5L-BS, YTZ6S, YTZ7S |
|

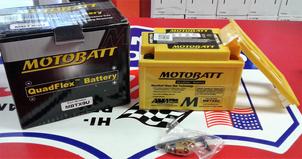

| Dimension |
Voltage 12
CCA 160
Capacity (10HR) 10
Weight 3.40kg / 7.50lbs
Dimensions (Inches / mm)
L: 5.94 (151)
W: 3.43 (87)
H: 4.13 (110) |
|
|
| Brief |
Terminal Locations 4
Terminal 2, M6x2.5 (Part # MPT2)
Screws 4, M6x7 (Part # 2xMPS2)
Allen Wrench 1, 4x4 (Part # MPAK2)
Terminal Caps 4, 12x5.5 (Part # 2xMPC2)
Spacer 1, 5mm Bottom (Part # MPBS1)
Case Color Yellow
Cap Style NA
Replaces:
YTX9BS, YT12ABS, YTZ12S, YTZ14S |
|
|
|
